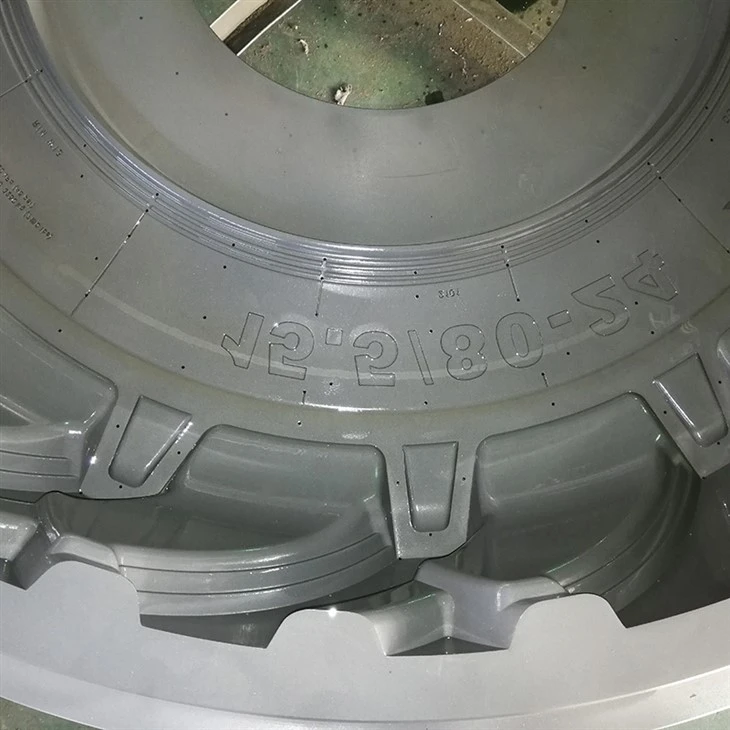

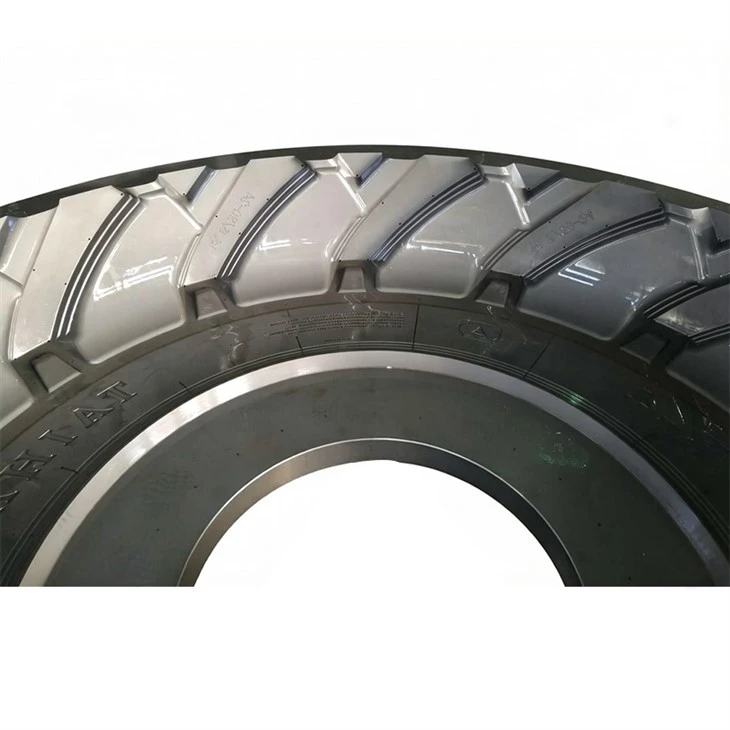

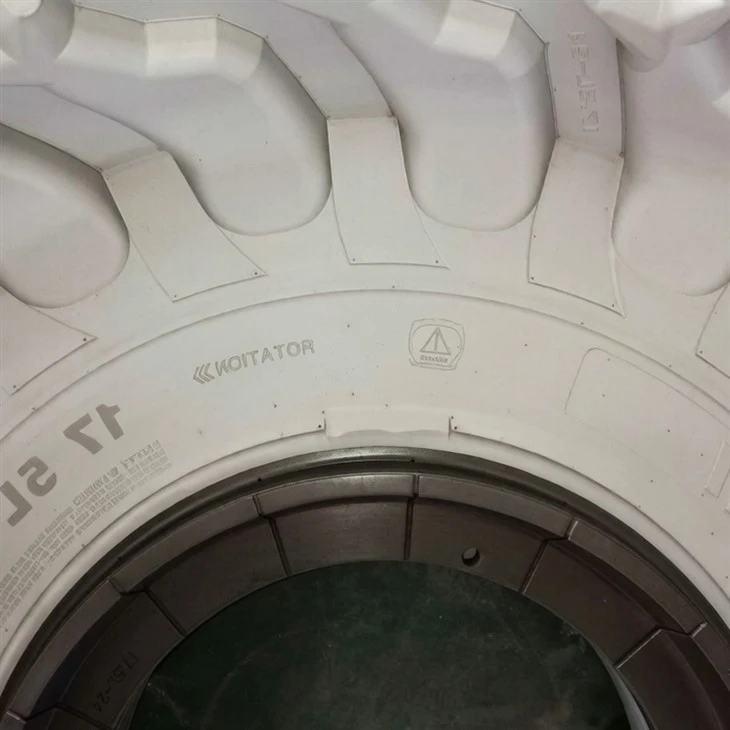

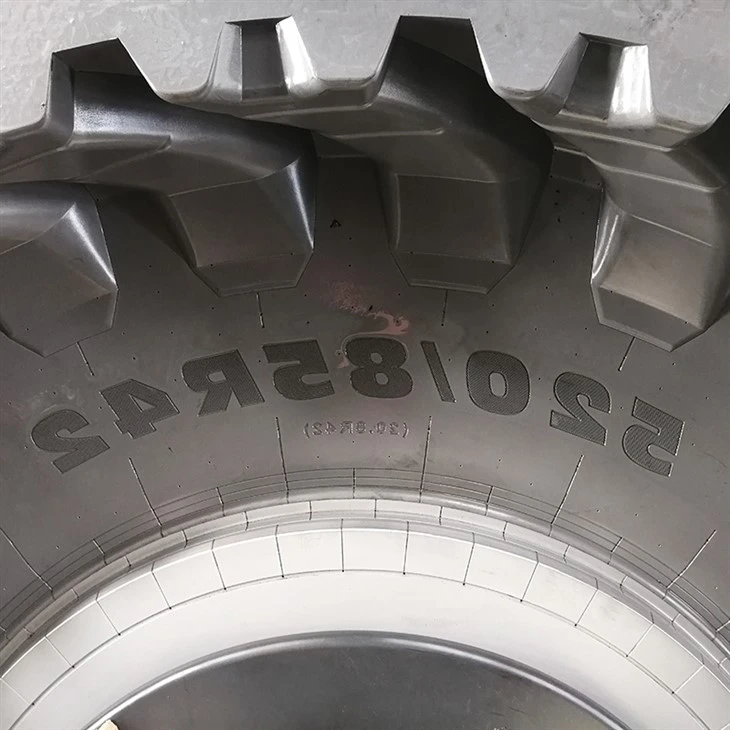

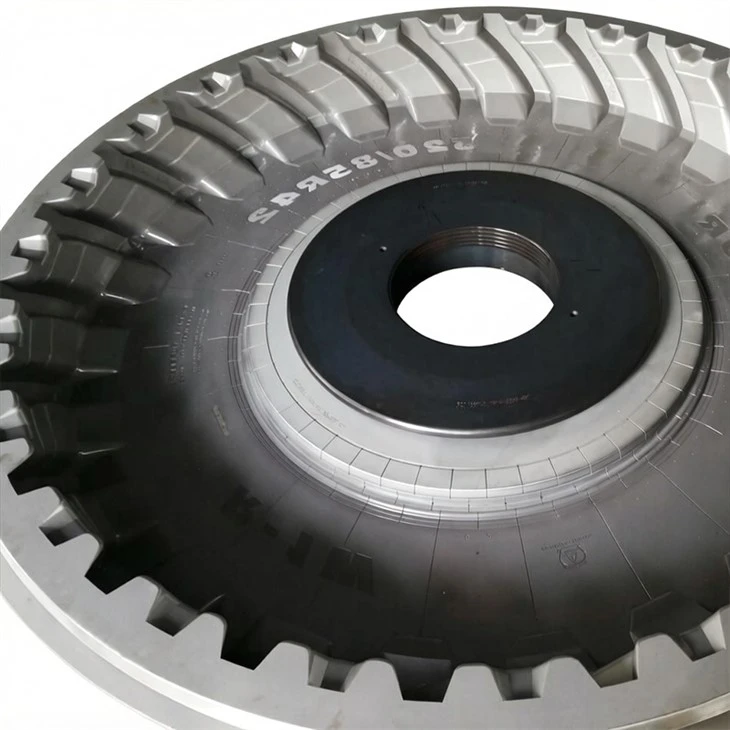

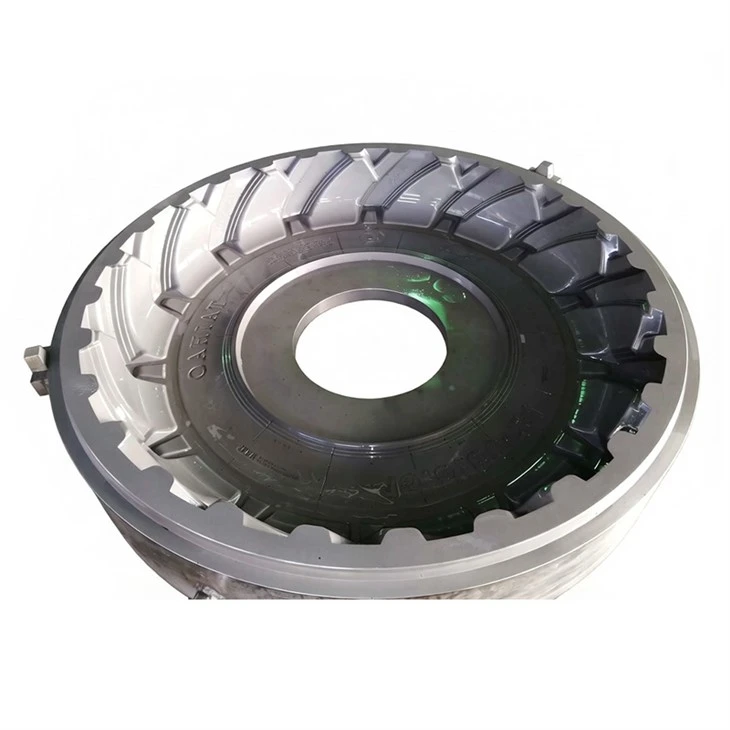

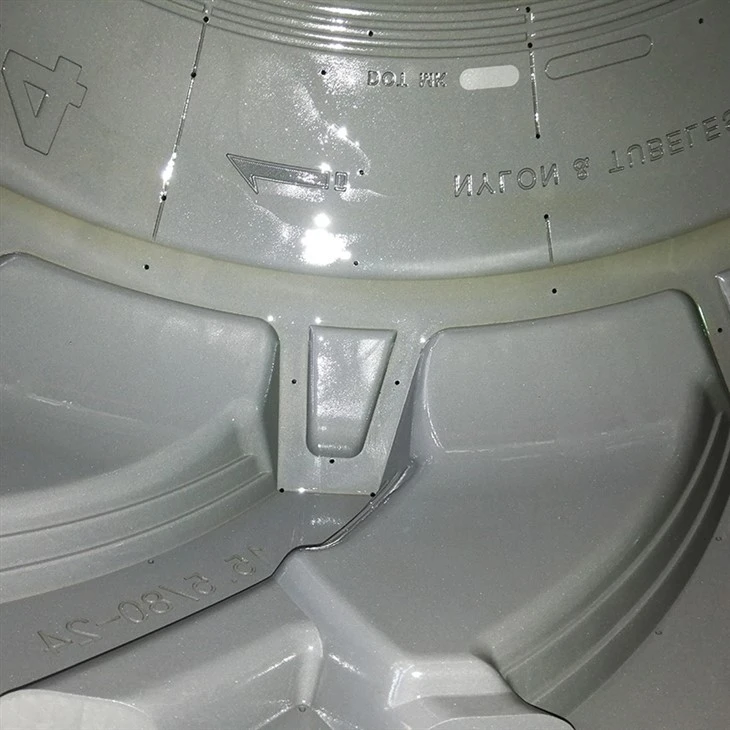

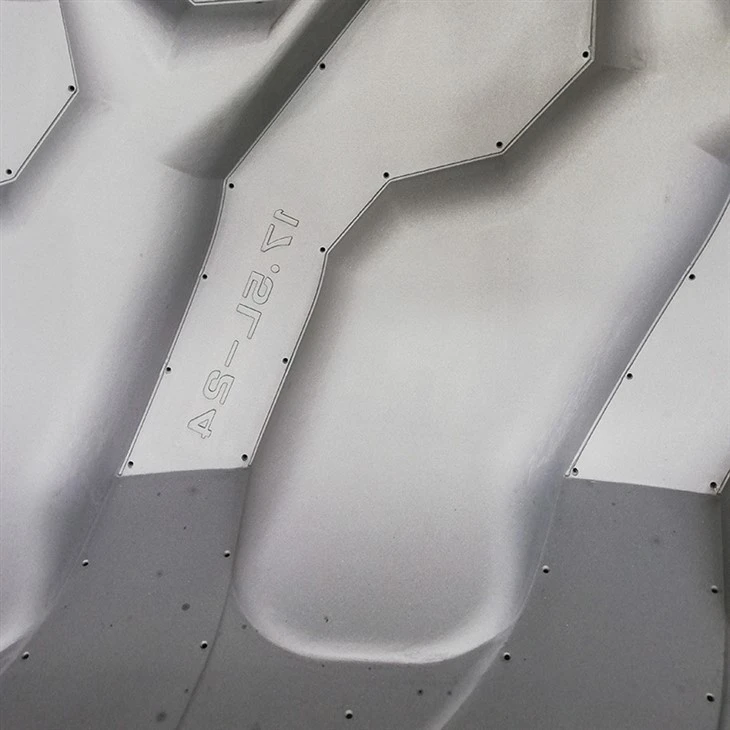

Two Piece Tractor Tire Mold
Application Tire: Tractor Drive Wheels, Guide Wheels
Material: High-Strength Cast Steel, High-Toughness Mold Steel for Pattern Segments
Pattern Segment Hardness: HRC 35-40, Nitrided
Draft Angle: 1.5° - 3.5° (Customized by Pattern Depth)
Deep Pattern Tractor Tires: VARON is the Expert
We are Anhui VARON Mould Co., Ltd. We have 30 years of specialization. This is our Two Piece Tractor Tire Mold. It is made for tractor drive wheels. Tractor patterns are deep, up to 40mm. The mold must be very strong. We use high-strength cast steel. We thicken the pattern segment root. We optimize the draft angle. We also offer quick-change side plates. This makes it easy to change tire sidewall brand markings. Our factory has 85 employees. We produce 1,500 molds per year. We are a top ten tire mold company in China.
|
Parameter |
Value / Requirement |
|
Mold Type |
Two-Piece Tractor Tire Mold |
|
Application Tire |
Tractor Drive Wheels, Guide Wheels |
|
Material |
High-Strength Cast Steel, High-Toughness Mold Steel for Pattern Segments |
|
Pattern Segment Hardness |
HRC 35-40, Nitrided |
|
Draft Angle |
1.5° - 3.5° (Customized by Pattern Depth) |
|
Parting Line Hardness |
HRC 38-42 |
|
Positioning System |
Coarse Taper Pins + Fine Cylindrical Pins |
|
Side Plate Change Time |
≤4 hours (Quick-Change Structure) |
|
Warranty |
1 Year |
|
Minimum Order Quantity |
1 Set |
|
Delivery Time |
40-90 Days |
Real Data: Feedback from Sri Lankan Farm Machinery
A Sri Lankan farm tire supplier bought 12 sets of our tractor mold in 2021. Their previous mold had a problem. The pattern segment root cracked after 20,000 curing cycles. We used finite element analysis to optimize the root radius. We increased it from R2mm to R5mm. The customer used our mold for 9 months. It went through over 30,000 cycles. No cracks. Also, our quick-change side plates let them change brand markings in half a day. Before, it took two days. The customer said, "VARON solved our pain point." Our Two Piece Tractor Tire Mold uses a nitriding process. The surface hardness is high. This resists wear from heavy rubber.
Our Differentiators for You
We support 1-set MOQ. We offer pattern segment refurbishment. Side plates can be ordered separately. We send production photos and videos. We offer a 1-year warranty and 7×24 after-sales service. You are welcome to inspect at our factory. We support EXW, FOB, and DDP. Payment is 30% deposit, 70% before shipment. Custom molds need 50% deposit. Choose our Two Piece Tractor Tire Mold. No cracks at the pattern segment root. Change side plates in half a day. For deep patterns, VARON knows best.
