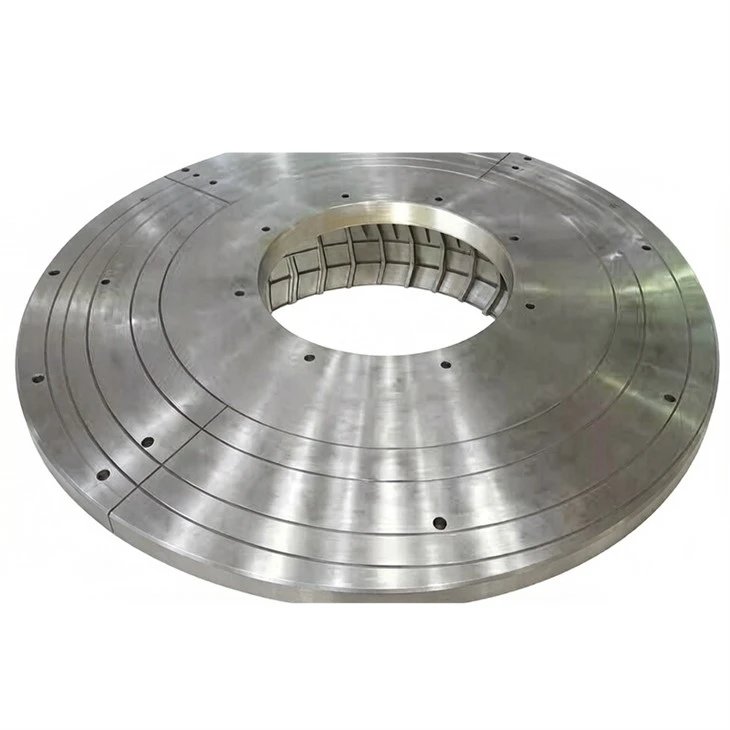

Two Piece OTR Giant Tire Mold
Application Tire: 35-Inch and Larger Giant OTR Tires
Material: High-Strength Low-Alloy Steel, Segmented Cast/Forged then Welded
Mold Outer Perimeter: Wrap-Around Reinforcing Band or Steel Hoop
Parting Line Runout: ≤0.05mm (Machined on Large Gantry Mill)
The Giant Among Two-Piece Molds
We are Anhui VARON Mould Co., Ltd. We produce 1,500 molds per year, including giant tire sizes. This is our Two Piece OTR Giant Tire Mold. It is used for 35-inch and larger giant OTR tires. The mold itself can weigh over 10 tons. We use segmented casting plus precision welding plus overall finish machining. We make molds over 3 meters in diameter. We serve customers including global mining giants. Our core team has over 30 years of experience. We are a standing director of the China Rubber Industry Association.
|
Parameter |
Value / Requirement |
|
Mold Type |
Giant Tire Two-Piece Mold |
|
Application Tire |
35-Inch and Larger Giant OTR Tires |
|
Material |
High-Strength Low-Alloy Steel, Segmented Cast/Forged then Welded |
|
Mold Outer Perimeter |
Wrap-Around Reinforcing Band or Steel Hoop |
|
Parting Line Runout |
≤0.05mm (Machined on Large Gantry Mill) |
|
Dowel Pins |
Large Diameter Taper Pins, Self-Centering |
|
Cavity Hardfacing |
Wear-Resistant Alloy, Thickness ≥5mm |
|
Weld Inspection |
100% |
|
Warranty |
1 Year |
|
Minimum Order Quantity |
1 Set |
|
Delivery Time |
90-150 Days |
Customer Case: Trust from a Chinese Mining Company
In 2021, a large Chinese mining company needed giant tire molds. They had only used European brands before. We invited them to visit our factory. They saw our segmented welding plus overall annealing process. They saw our large gantry milling capability. They placed a trial order. After testing, the tire dimensions were all within tolerance. Dynamic balance was also good. Now they have bought 18 sets in total. They also recommended us to a Canadian partner. Our Two Piece OTR Giant Tire Mold uses 100% weld inspection. The cavity is hardfaced with wear-resistant alloy of at least 5mm thickness. This gives long life under extreme pressure.
Our Unique Services for Giant Molds
Giant mold transport is special. We provide professional international shipping solutions. We can send engineers to site for assembly and debugging. Each mold set comes with Specialized lifting gear and turnover frames (special lifting gear and turning frame). We offer a segmented modular design. The mold can be disassembled into quarters or sixths for easy transport. Also, if a single module is damaged, it can be replaced individually. We support 1-set MOQ. We offer a 1-year warranty. You are welcome to inspect at our factory. Choose our Two Piece OTR Giant Tire Mold. Handle 3,000 tons. Ship worldwide. The choice of mining giants is now yours.
