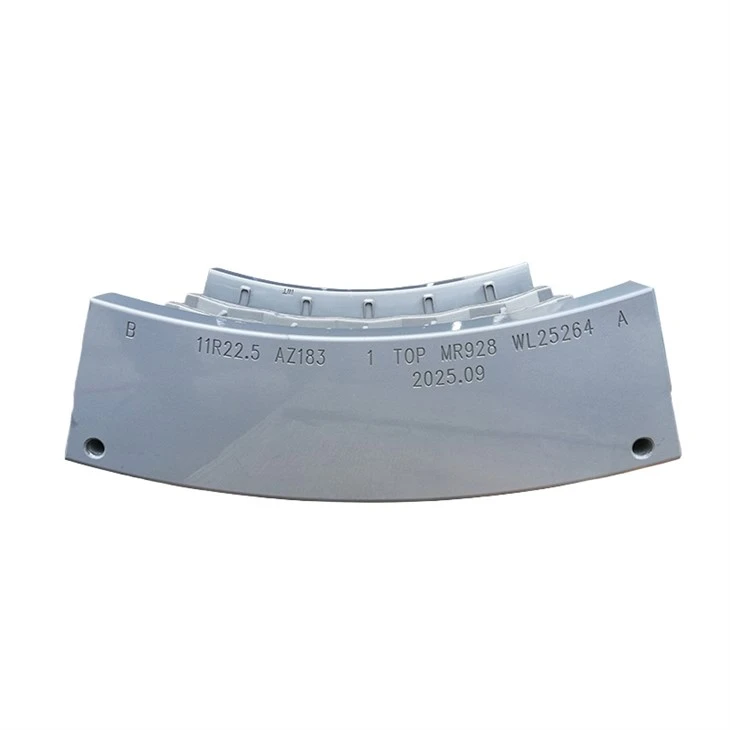

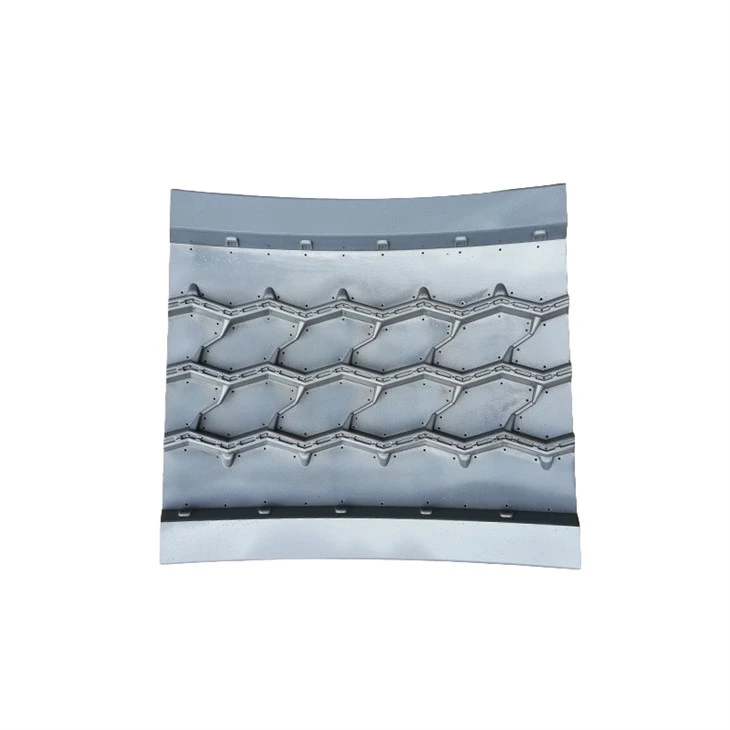

All Steel Radial Bus Tire Mold
video

All Steel Radial Bus Tire Mold

Mold type: All-steel inclined-plane guided radial segmented mold
Applicable tires: Bus / coach radial tires
Guide & accuracy: Inclined plane, fit ±0.02 mm; cavity Ra ≤0.8 µm
Material & heat treatment: Cast/forged steel body; precipitation-hardening stainless side plates; HRC 38–42; nitrided layer 0.25–0.35 mm
Temperature control, MOQ, warranty: Surface temperature ±1.5 °C; MOQ 1 set; lead time 30–100 days; 1-year warranty
Send Inquiry
Product Introduction

Passenger Application

City buses, intercity coaches and tour buses carry dozens of passengers per trip, so cured tires have to run concentric, stay cool and keep legible sidewall markings. This segmented mold targets that bus radial line. The All Steel Radial Bus Tire Mold uses an inclined-plane guide lapped to ±0.02 mm and a cavity roughness of Ra ≤0.8 µm.



Side Plates and Even Heat

The side plates are made from precipitation-hardening stainless steel rather than plain tool steel, so engraved lettering survives daily cure cycles. Body hardness is HRC 38–42 with a deeper nitrided layer of 0.25–0.35 mm. Around-the-circumference hot runners hold mold surface temperature within ±1.5 °C; uneven temperature is a common cause of non-uniform bus tires, and tighter control pushes first-pass yield up. Buyers send tire specs, cure-press data and tread drawings, and the toolroom picks structure, material and runner layout to match.



A Thai Bus-plant Trial

A Thai bus-tire plant ordered ten sets in 2025 and asked for very clear sidewall text, since city buses are inspected often. CNC engraving set letter depth at 0.8 mm with sharp, burr-free edges. After curing, the plant reported uniformity acceptance rising from 92% to 97%. ANHUI VARON MOULD CO.,LTD confirmed drawings and a 3D simulation before the first set was cut, and runs every set through 100% inspection and a trial cure before it ships.



Commercial Terms

MOQ is one set; mixed specifications can share a container. Lead time is 30–100 days, and return orders move faster. EXW, FOB and DDP are accepted in RMB, USD or EUR, with custom orders at 50/50 and standard at 30/70 deposit. Export packing is moisture-, pressure- and impact-proof, and progress photos and videos follow machining, assembly and trial cure. The factory accepts the buyer's own quality team on site rather than third-party inspectors. The All Steel Radial Bus Tire Mold carries a one-year warranty on non-human defects, with 7×24 support.



Product Specifications:

Parameter

Specification

Mold type

All-steel inclined-plane guided radial segmented mold

Applicable tires

Bus / coach radial tires

Guide & accuracy

Inclined plane, fit ±0.02 mm; cavity Ra ≤0.8 µm

Material & heat treatment

Cast/forged steel body; precipitation-hardening stainless side plates; HRC 38–42; nitrided layer 0.25–0.35 mm

Temperature control, MOQ, warranty

Surface temperature ±1.5 °C; MOQ 1 set; lead time 30–100 days; 1-year warranty
