Two Piece Agricultural Tire Mold
video

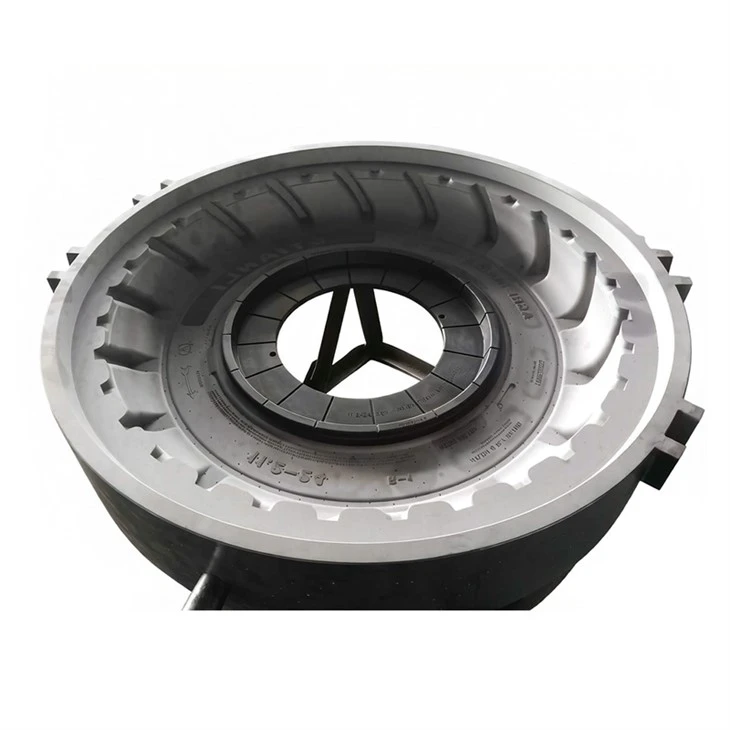

Two Piece Agricultural Tire Mold

Mold Type: Standard Agricultural Tire Two-Piece Mold
Application Tire: Tractor, Harvester, Farm Trailer Tires
Material: High-Grade Cast Steel or Ductile Iron
Pattern Ring Hardness: HRC 28-32, Nitriding Layer 0.15-0.2mm
Parting Line Precision: ≤0.05mm
Send Inquiry
Product Introduction

Agricultural Tires: VARON Has Made Tens of Thousands

We are Anhui VARON Mould Co., Ltd. We have 30 years of agricultural tire mold experience. This is our Two Piece Agricultural Tire Mold. It is used for tractors, harvesters, and farm trailers. Agricultural tires need traction on uneven soil. They also need resistance to ozone and fertilizer corrosion. We use cast steel or ductile iron. The cost is controlled. The quality is reliable. We also have a complete pattern library (R-1, W-1, etc.). We can start production as soon as you order. Our factory produces 1,500 molds per year. Our products sell to over ten countries.



Parameter

Value / Requirement

Mold Type

Standard Agricultural Tire Two-Piece Mold

Application Tire

Tractor, Harvester, Farm Trailer Tires

Material

High-Grade Cast Steel or Ductile Iron

Pattern Ring Hardness

HRC 28-32, Nitriding Layer 0.15-0.2mm

Parting Line Precision

≤0.05mm

Dowel Pin Clearance

≤0.03mm

Cavity Surface Roughness

Ra ≤0.8μm

Rust Prevention

Anti-Rust Primer on Mold Body, Anti-Rust Oil on Cavity

Warranty

1 Year

Minimum Order Quantity

1 Set

Delivery Time

50-90 Days



Customer Case: Long-Term Cooperation in Sri Lanka

A Sri Lankan agricultural tire factory has used VARON's standard two-piece molds since 2019. They buy 30-50 sets each year. Why do they always choose VARON? First, our molds have a rust prevention treatment. They can be stored for half a year during off-seasons without rust. Second, our vent hole layout is reasonable. The pattern edges are complete. Third, our price is 25% cheaper than European brands. In 2024, they placed another order for 40 sets. Six years of cooperation with zero complaints. Our Two Piece Agricultural Tire Mold uses a nitriding layer of 0.15-0.2mm. This gives enough wear resistance for agricultural use.



Our Service for You

We support 1-set MOQ. Mixed orders are fine. We provide quick drawings for standard patterns. We send production photos. We offer a 1-year warranty. We supply wear parts (dowel pins, vent sleeves) for a long time. Returning customers get 15%-25% shorter delivery times. You are welcome to inspect at our factory. We support EXW, FOB, and DDP. Payment is 30% deposit, 70% before shipment. Choose our Two Piece Agricultural Tire Mold. Rust-resistant and corrosion-resistant. Complete pattern edges. Help your customers save money, save worry, and save time.

Hot Tags: two piece agricultural tire mold, China two piece agricultural tire mold manufacturers, suppliers, factory
