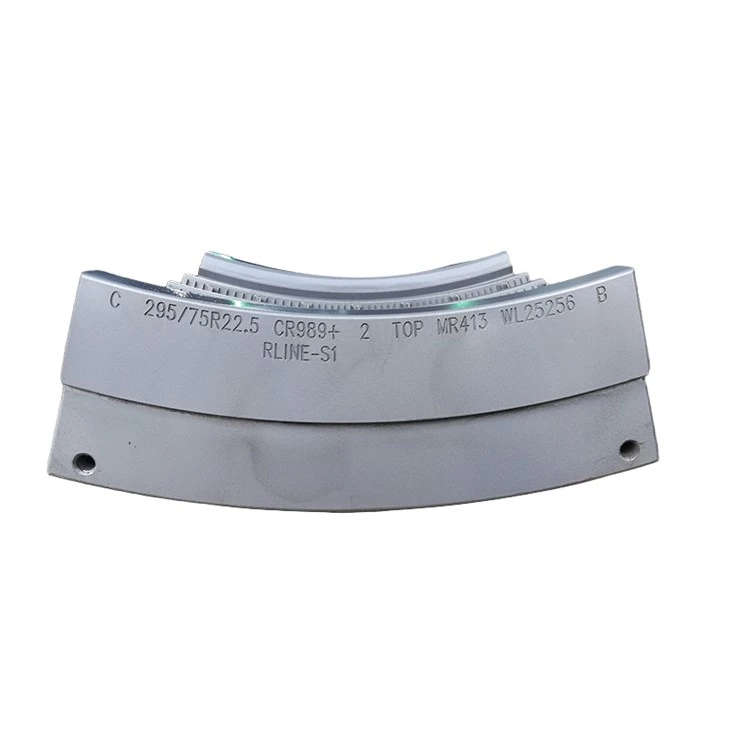

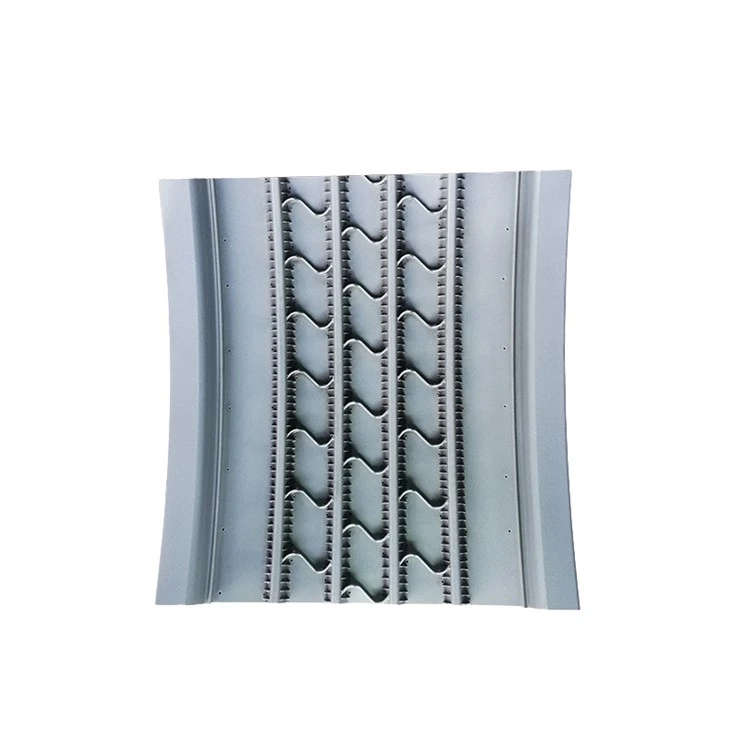

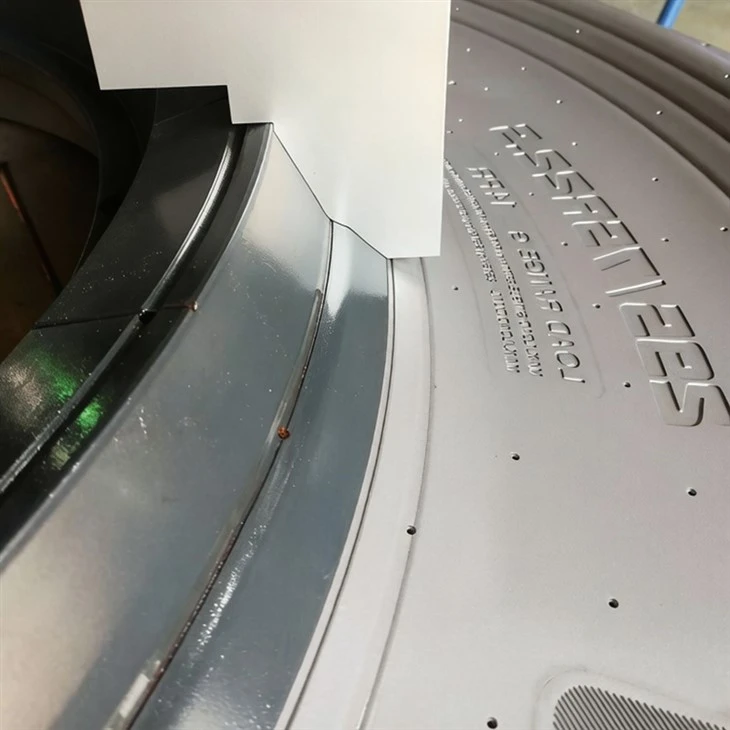

Slanted-Plane Commercial Vehicle Tire Mold
Application Tire: Commercial Vehicle Tires (Light, Medium, Heavy Truck, Bus)
Guide Structure: Slanted Plane, Repeat Positioning ≤0.01mm
Material: High-Strength All Steel, Replaceable Pattern Segments
Surface Roughness (Cavity): Ra ≤0.4μm
One Mold for Many Commercial Vehicles
We are Anhui VARON Mould Co., Ltd. We are veterans in tire molds for 30 years. This is our All Steel Radial Commercial Vehicle Tire Mold. It is a platform product. You can use it for light trucks, medium trucks, heavy trucks, and buses. Just change the pattern segments, and the same mold set does different jobs. We standardized the interface dimensions. This saves money and time for tire factories. Our factory covers 22,000 square meters. We have 85 staff, including over 20 R&D and management personnel. We produce 1,500 molds per year. We are among China's top ten tire mold companies.
|
Parameter |
Value / Requirement |
|
Mold Type |
All Steel Radial Segmented Mold (Modular) |
|
Application Tire |
Commercial Vehicle Tires (Light, Medium, Heavy Truck, Bus) |
|
Guide Structure |
Slanted Plane, Repeat Positioning ≤0.01mm |
|
Material |
High-Strength All Steel, Replaceable Pattern Segments |
|
Surface Roughness (Cavity) |
Ra ≤0.4μm |
|
Pattern Segment Change Time |
≤30 minutes |
|
Mold Set Lifespan |
Can fit multiple pattern sets, theoretically unlimited |
|
Warranty |
1 Year |
|
Minimum Order Quantity |
1 Mold Set or 1 Set of Pattern Segments |
|
Delivery Time |
30-100 Days |
Customer Case: Flexible Production in China
In 2024, a small and medium tire factory in China came to us. Their orders were "small batch, many varieties." They changed patterns three or four times each month. Before, they bought solid molds. One specification needed one complete mold. Their warehouse was full, and they had high costs. We recommended this platform mold. They bought one mold set. Then they bought three different pattern segment sets in batches. Changing a pattern now takes only 30 minutes. That is 80% faster than changing a whole mold. After half a year, they saved about 40% on mold purchase costs. Our All Steel Radial Commercial Vehicle Tire Mold gave them flexibility. We also offer pattern segment refurbishment. The cost is about 30% of a new segment.
Our Differentiators for Distributors
We support 1-set MOQ and mixed orders. You can put different specifications in one container. We provide 3D simulation and drawing confirmation. During production, we share photos and videos. Our after-sales service is 7×24 hours with a dedicated person. We offer a 1-year warranty. You are welcome to inspect goods at our factory. We do not accept third-party inspection because molds are expensive and direct talk is better. We support EXW, FOB, and DDP. Payment is 30% deposit, 70% before shipment. Custom orders need 50% deposit. Choose our All Steel Radial Commercial Vehicle Tire Mold. One mold set does many jobs. Spend less, do more, and respond flexibly to market changes.
