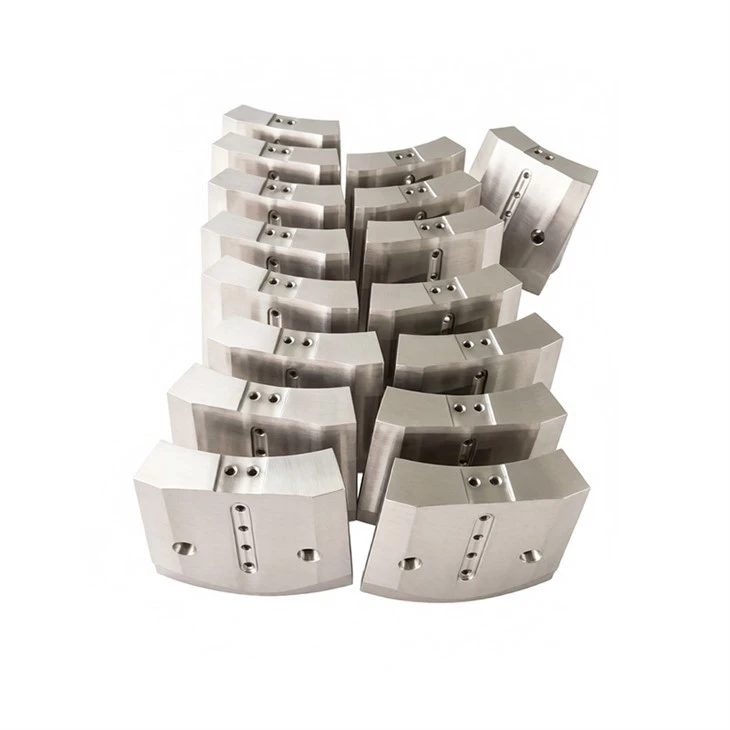

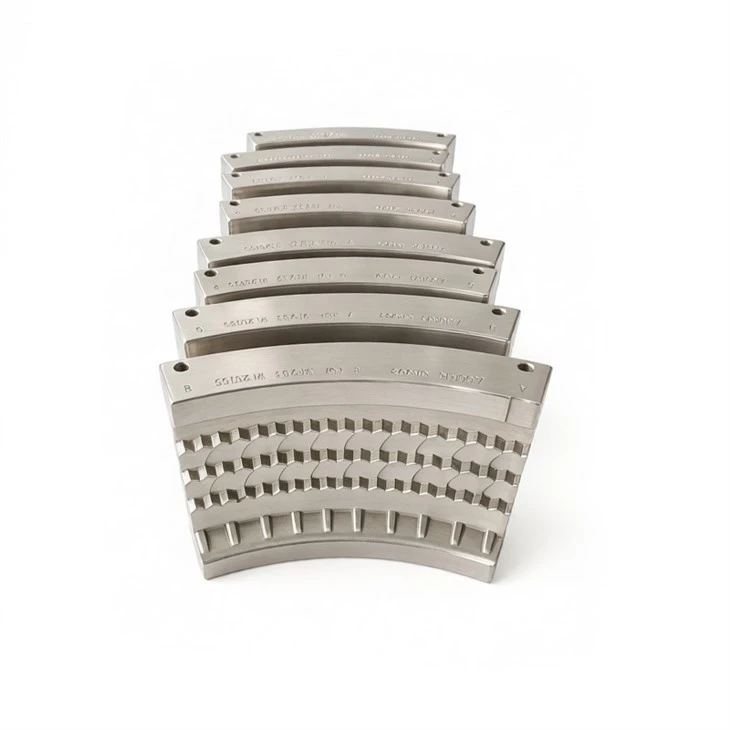

Segment Type Radial Tire Mold
Application Tire: Passenger Car Tires, Light Truck Tires
Guide Structure: Slanted Plane, Mold Set Inner Cone Runout ≤0.02mm
Material: High-Strength All-Steel Mold Set, Independent Pattern Segments
Pattern Segment Change Time: 1.5 - 2 hours
Change Patterns Like Changing Tool Blades
We are Anhui VARON Mould Co., Ltd. We have innovated for 30 years. This is our Segment Type Radial Tire Mold. It separates the traditional solid mold set into a base set and removable pattern segments. Want to change the pattern? Do not remove the whole mold set. Just change the pattern segments. One mold set can fit ten or more pattern sets. This makes your factory flexible. We have 85 employees and produce 1,500 molds per year. Our annual output is 120 million yuan.
|
Parameter |
Value / Requirement |
|
Mold Type |
Segment Type Slanted-Plane Radial Mold |
|
Application Tire |
Passenger Car Tires, Light Truck Tires |
|
Guide Structure |
Slanted Plane, Mold Set Inner Cone Runout ≤0.02mm |
|
Material |
High-Strength All-Steel Mold Set, Independent Pattern Segments |
|
Pattern Segment Change Time |
1.5 - 2 hours |
|
Pattern Segment Interchange Precision |
Circumferential Runout after Assembly ≤0.03mm |
|
Pattern Segment Surface Treatment |
Nitriding, Depth 0.2-0.3mm, Hardness ≥700HV |
|
Warranty |
1 Year |
|
Minimum Order Quantity |
1 Mold Set or 1 Set of Pattern Segments |
|
Delivery Time |
Mold Set 45-60 Days, Pattern Segments 45-60 Days |
Real Case: Flexible Production in China
A Chinese tire factory makes high-performance snow tires and summer tires. The market changes fast. They change patterns five or six times a year. Before, they used solid molds. Each change required a full day of downtime. With our Segment Type Radial Tire Mold, changing a pattern takes only 2 hours. They bought one mold set and eight pattern segment sets. Warehouse space went down by 70%. Mold investment was cut in half. Now, when a new seasonal tire is needed, they order pattern segments just 20 days ahead. Our mold uses a slanted-plane guide. The mold set inner cone runout is ≤0.02mm. This ensures stable clamping.
Our Advantages for You
We sell pattern segments separately. They are much cheaper than a full mold. If one segment breaks, you replace only that one. You do not scrap the whole set. We also offer pattern segment refurbishment. The cost is about 30% of a new segment. We support 1-set MOQ. Mixed orders are fine. We send production photos and videos. Our after-sales team is on call 7×24 hours. We offer a 1-year warranty. You are welcome to inspect at our factory. We accept EXW, FOB, and DDP. Payment is 30% deposit, 70% before shipment. Choose our Segment Type Radial Tire Mold. Change patterns in 2 hours. Launch new tires in 7 days. Flexible production starts with VARON.
