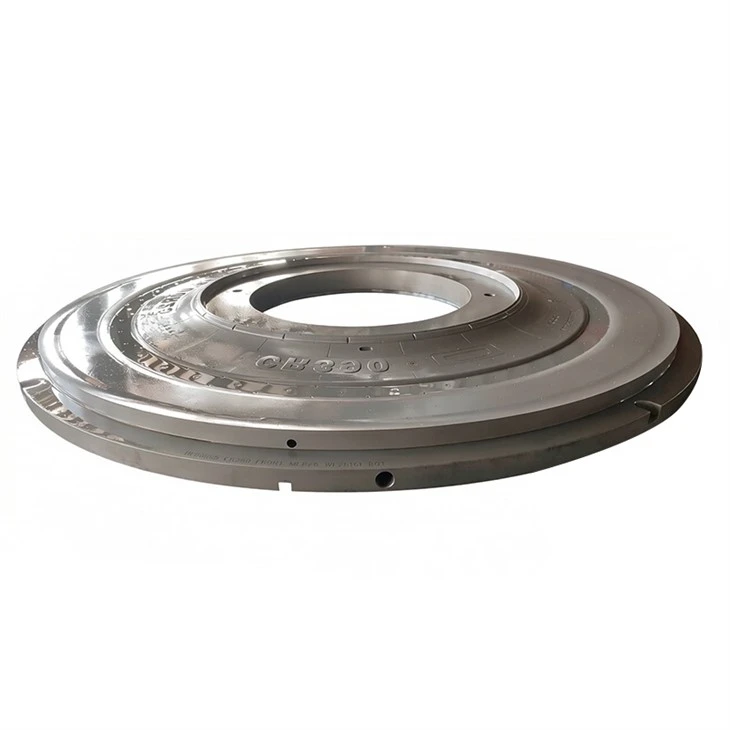

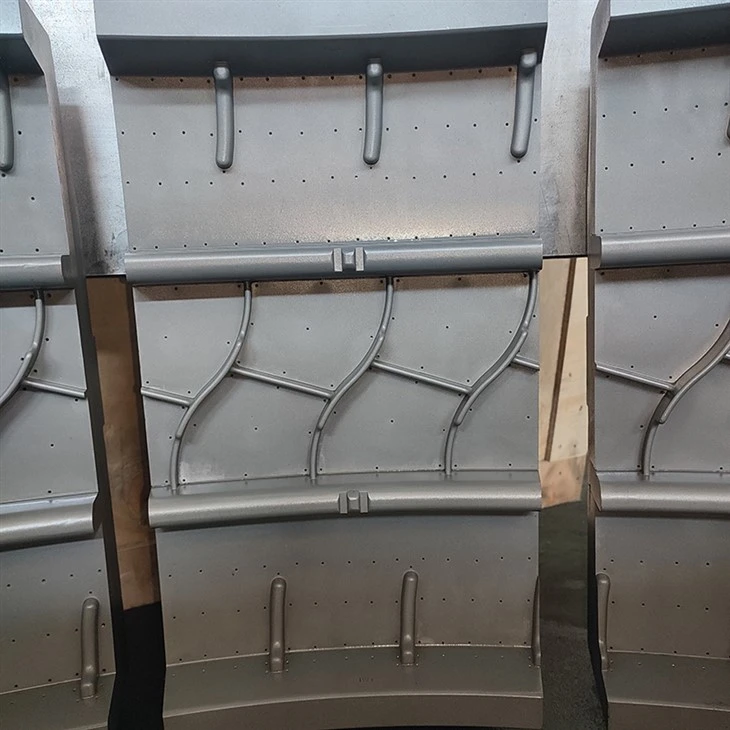

Radial Engineering Tire Mold
Application Tire: Off-the-Road (OTR) Radial Tires for Construction
Guide Structure: Heavy-Duty Slanted Plane, Wear Plate Hardness HRC 58-62
Material: High-Grade Cast/Forged Alloy Steel, Hot-Work Die Steel for Pattern Ring
Hardness: HRC 42-46
A Heavy-Duty Mold for Construction Machines
We are Anhui VARON Mould Co., Ltd. We have 85 employees and make 1,500 molds per year. This is our Radial Engineering Tire Mold. It is designed for loaders, motor graders, and mining dump trucks. These tires are huge. Some are over 2 meters in diameter and weigh half a ton. Vulcanization pressure exceeds 2,000 tons. We use reinforced all-steel and a heavy-duty guide system. This ensures the mold does not deform or expand. Our company has over 30 years of experience. We are a top ten tire mold maker in China. We hold ISO9001:2015 certification.
|
Parameter |
Value / Requirement |
|
Mold Type |
Slanted-Plane Radial Segmented Mold |
|
Application Tire |
Off-the-Road (OTR) Radial Tires for Construction |
|
Guide Structure |
Heavy-Duty Slanted Plane, Wear Plate Hardness HRC 58-62 |
|
Material |
High-Grade Cast/Forged Alloy Steel, Hot-Work Die Steel for Pattern Ring |
|
Hardness |
HRC 42-46 |
|
Nitriding Layer Depth |
0.3-0.4mm, Hardness ≥800HV |
|
Guide Contact Area |
≥85% |
|
Mold Surface Temperature Difference |
≤±2.5℃ |
|
Warranty |
1 Year |
|
Minimum Order Quantity |
1 Set |
|
Delivery Time |
60-100 Days |
Real Case: Trust from an Indonesian Mine
In 2024, a large mining tire factory in Indonesia bought 6 sets of our Radial Engineering Tire Mold. They had problems with their previous mold. When making deep pattern of 35mm, the pattern root often had missing rubber. Their scrap rate was 8%. Our team redesigned the venting system. We added auxiliary vent slots. We also increased the guide surface width by 30%. This makes the mold more stable under clamping force. The customer tested our mold. The scrap rate dropped to under 2%. That is a huge saving. Later, they ordered 10 more sets. Our nitriding process gives a surface hardness over 800HV. This resists abrasion from tough rubber compounds. The mold life is much longer.
Our Service and Flexibility
We offer 1-set MOQ. Mixed orders are fine. We provide full progress reports. At key stages, we send photos and videos. Our after-sales team is on call 7×24 hours. For domestic issues, we arrive in 24-48 hours. For overseas, we use remote diagnosis plus local partner support. We offer a 1-year warranty. You are welcome to inspect at our factory. We do not accept third-party inspection. Direct communication is key. We support EXW, FOB, and DDP. Payment is 30% deposit, 70% before shipment. Custom molds need 50% deposit. Choose our Radial Engineering Tire Mold. We help your customers lower scrap rates from 8% to 2%. We do not sell iron. We sell "mine-grade reliability."
